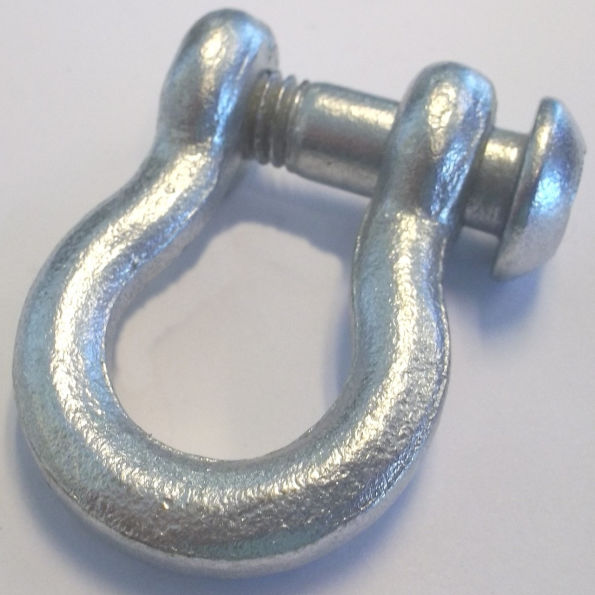

These Swing Shackles take the place of S-hooks. Unlike S-hooks they can be used multiple times. They are also much easier to install then S-hooks. They are stronger and some cities and parks are requiring their use instead of S-hooks. This shackle is 5/16” with 3/8” x 1 ½” bolt.   There is a ½” opening at the bolt and at the widest it is 1”. This will accept up to a ½” chain. This shackle works with the SH130, SH140. SH140A and SH142 swing hangers. Tensile strength is 1900 lbs.

Installation: Make sure you are using correct size of shackle. The shackle should not crimp material producing a wear spot on whatever material you are attaching to shackle. Unscrew shackle bolt from one side of shackle body with H175 wrench. Place bolt through the two openings present on the components you are attaching together. Screw shackle bolt back into shackle body. Shackles can be used in various assemblies. Call us if you have any questions. Shackles should never be pulled at an angle because the capacity will be tremendously reduced. Centralize whatever is being attached on the bolt with suitable washers or spacers. Ensure the bolt is correctly screwed into the shackle eye with an H175 wrench. Check that the threads are fully engaged with the body, but not so tight that it causes the body to bend in or that the threads go past the body by more than two threads.

Safe Use: This is for children 0 - 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.

Maintenance: : Do the following to reduce the chance of serious injuries. At beginning and end of each play season and once a month during play season, check for sharp edges and/or cracks in metal. Check for excessive wear Check for rust and to make sure bolt is still tight and not more than 10% worn. Replace parts as necessary for safety. The shackle bolt should never be replaced with a regular bolt. Maintain detailed inspection and maintenance records for public-use playground equipment.
